John Deere Z530M – 54" Zero-Turn Riding Lawn Mower

OVERVIEW

Model #BG21196

Built to Mow Well. Built to Last.

The John Deere Z530M is engineered for homeowners who demand dependable performance, exceptional cutting quality, and all-day comfort. Powered by a 24 HP John Deere-branded Kawasaki V-Twin engine and equipped with a 54-inch, 3-blade Accel Deep™ Mower Deck, the Z530M delivers the power and cutting performance needed to handle demanding mowing conditions across large, relatively flat properties with obstacles.

The Z530M combines high-performance mowing, responsive zero-turn maneuverability, durable construction, and operator-focused comfort to make demanding mowing tasks more efficient and enjoyable.

POWER & CUTTING PERFORMANCE

• 24 HP John Deere-branded Kawasaki V-Twin engine delivers strong power and torque for mowing, mulching, and bagging applications.
• 54-inch, 3-blade Accel Deep™ Mower Deck is engineered to process tall grass efficiently while maintaining excellent cut quality at higher mowing speeds.
• Dual Hydrostatic Tuff Torq® transmission provides smooth, responsive power delivery and durability.
• Up to 8 MPH forward speed allows efficient coverage of larger properties.
• Dual lap-bar controls provide precise zero-turn maneuverability around trees, landscaping, flower beds, and other obstacles.
• Electric PTO blade engagement provides convenient and consistent deck operation.
• 18 cutting-height positions allow you to select the desired mowing height for different lawn conditions.

OPERATOR COMFORT

The Z530M is designed to make extended mowing sessions more comfortable:

• 20-inch cut-and-sewn high-back seat
• Integrated armrests
• ComfortGlide™ suspension for a smoother ride
• Convenient cup holder
• Side and under-seat storage compartments
• Foot lift for easier deck adjustment
• Premium handlebars
• Color-coded controls for quick identification
• Daylight-visible low-fuel warning light
• Rubber floor mats

SAFETY & PROTECTION

For additional operator protection, the Z530M features:

• Foldable Roll-Gard™ rollover protective structure (ROPS)
• Retractable seat belt
• Durable chassis and components designed for demanding residential use
• Cast-iron front axle for added strength and durability

COMPATIBLE PARTS & ATTACHMENTS

The Z530M supports a wide selection of genuine John Deere parts and attachments, allowing you to configure the mower according to your needs.

Available options include:

• 54-inch Mulch Kit
• 54-inch Material Collection System
• Premium Handlebars with Lights
• LED Light Kit
• Foot Pegs
• Toolbox
• Trash Receptacle
• Trimmer Carrier
• Tool Carrier
• Jack Kit
• Attachment Bar
• Hitch Kit
• Replacement Oil and Filters
• 54-inch Replacement Blades
• 54-inch Replacement Belt

HASSLE-FREE OWNERSHIP

John Deere backs the Z530M with a 4-year/300-hour limited bumper-to-bumper warranty, whichever comes first.

Owners also benefit from:

• Local John Deere dealer support
• 10-Point Pre-Delivery Inspection before sale
• Access to compatible John Deere parts and attachments
• Designed for straightforward operation and long-term ownership

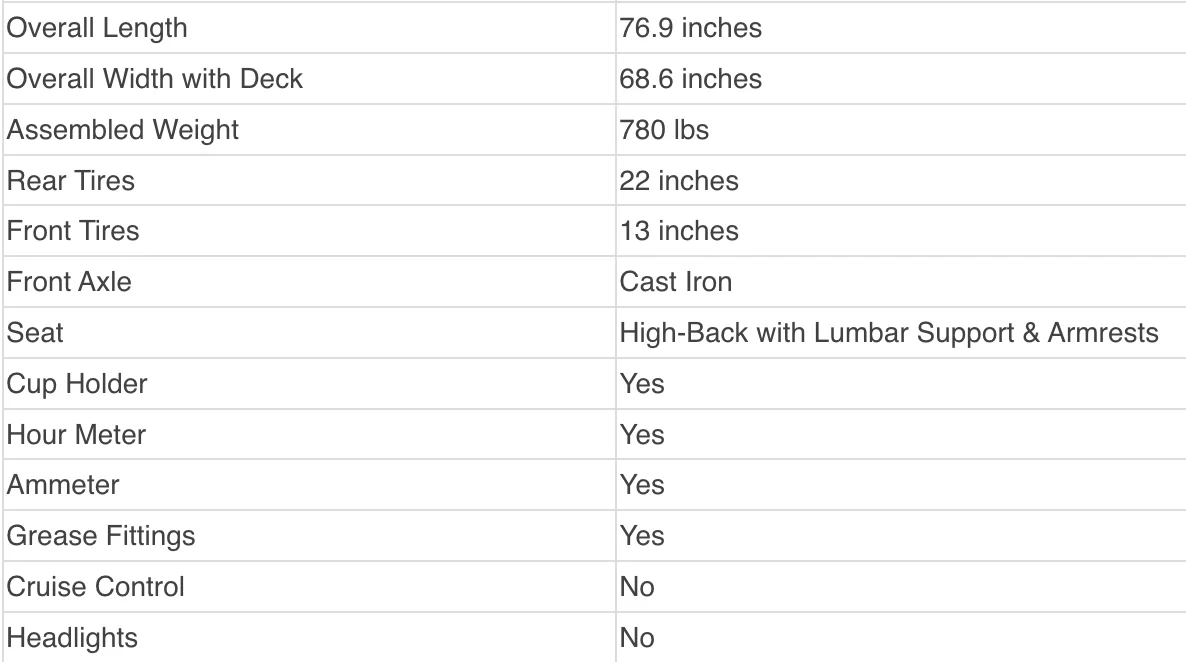

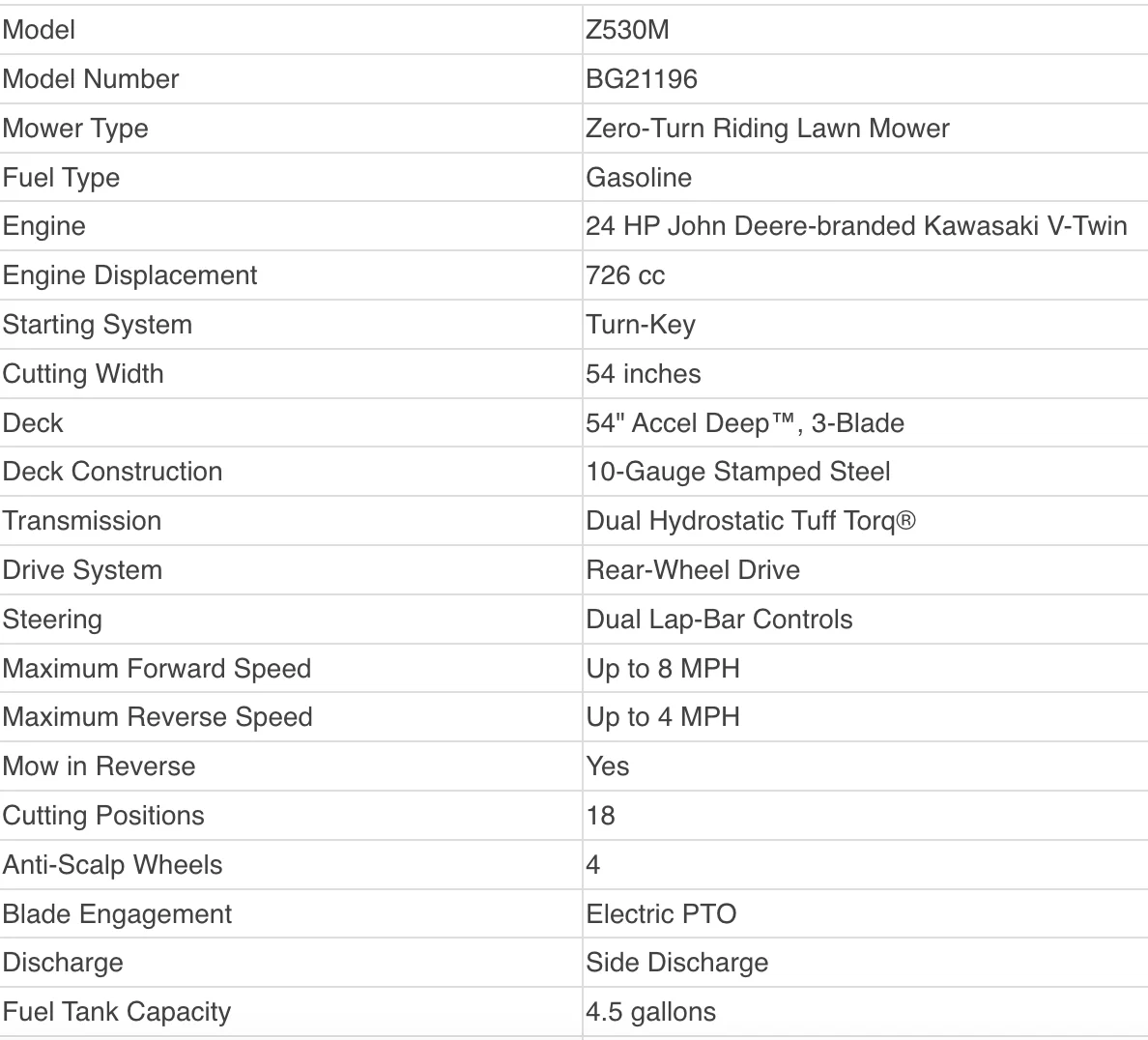

SPECIFICATIONS

WARRANTY

4-Year / 300-Hour Limited Warranty

Coverage applies for 4 years or 300 hours, whichever occurs first, subject to the manufacturer's warranty terms and conditions.

A PROFESSIONAL ZERO-TURN BUILT FOR PERFORMANCE

With its 24 HP V-Twin engine, 54-inch Accel Deep™ cutting deck, dual hydrostatic transmission, zero-turn maneuverability, premium operator seat, and comprehensive warranty coverage, the John Deere Z530M is designed to provide a dependable and comfortable mowing experience for demanding residential properties.
